    UV Resistant Cold Shrink Termination Kit Silicone Rubber 15KV Gray

    Ask Lasest Price
    Brand Name : Chuangyin
    Model Number : CYSLN--15-(1)3-150-240
    Certification : Test Report
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000+Piece+week
    Delivery Time : Within 7 days
    • Product Details
    • Company Profile

    UV Resistant Cold Shrink Termination Kit Silicone Rubber 15KV Gray

    Silicone Rubber Cold Shrink Termination And Joints 15KV Gray


    Cold Shrink Terminations are widely applicable for use on polymeric cables medium voltage up to 42 kV. It can terminating indoor and outdoor medium voltage cables. Made of high quality, UV resistant, Silicone Rubber (SIR), the termination offers easy installation and reliable performance insite. No tools, orheat sources are required.
    The core is stepped to allow a greater application range for armoured cables. Both indoor and outdoor terminations are available for single core and three core cables.
    Cable section: 25 to 630 mm'
    Voltage Rating: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV,
    12/20 (24) kV, 12.7/22 (24) kV, 18/20 (24) kV, 18/30 (36) kV,
    20.8/36 (42) kV, 21/35 (40.5) kV, 26/35 (40.5) kV
    Chuangyin Cold Shrink Termination are in accordance with
    IEC60502-4, IEEE standard 48, ANSI C119.4, VDE 0278 and
    other industry standards.


    Features

    Made of high quality, UV resistant, Silicone Rubber (SIR)

    Hydrophobic recovery, non-flammable, erosion resistance and fungus resistant

    Stress relief by Geometric Method technology

    Lightweight, compact design permits installs in restricted spaces

    Cable section: 25 to 400 mm2

    In compliance with IEC60502-4, IEEE standard 48, ANSI C119.4, VDE

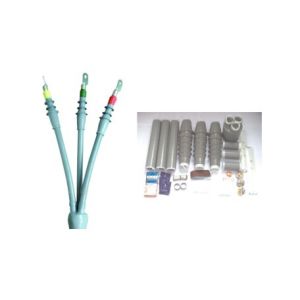

    kit contents


    Cold Shrink TerminationsSelf Fusing Tape
    BreakoutMastic
    SealingTubeSilicone Tube
    Installation TubeSilicone Grease
    Constant Force SpringWipers
    GroundingBraidTap
    Sealant TapeInstallation Instruction

    Technical Datal


    ItemParameters
    Voltage Class15 kV
    Voltage Rating6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV
    Installation SiteIndoor
    AC Withstand Voltage 5min39 kV
    DC Withstand Voltage 15min35 kV
    Moisture Test11 kV for 300h
    Wet AC Withstand Voltage 1min-
    Salt Fog Test-
    Partial Discharge15 kV, ≤10 pC
    BIL95 kV
    Cable Section25 to 400 mm2
