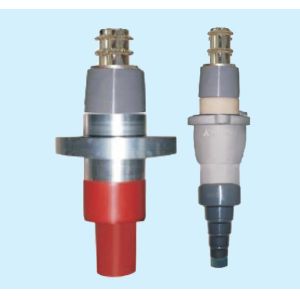

    Indoor Plug In Bushing Connector 35KV En50180-50181 Suitable For GIS panel high accuracy smart grid 11kv 22kv

    Ask Lasest Price
    Brand Name : Chuangyin
    Model Number : CYS-CBN(01)-35-50
    Certification : test report
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000Pcs/week
    Delivery Time : Within 7 days
    • Product Details
    • Company Profile

    Indoor Plug In Bushing Connector 35KV En50180-50181 Suitable For GIS panel high accuracy smart grid 11kv 22kv


    Indoor Plug-in type Connector 35KV En50180-50181 Suitable For GIS


    Plug-in Termination Kits is suitable for GIS incoming and outgoing wire connection. It is designed to mate with epoxy insulated bushing, and connect wire to switchgear fully shielded, fully insulated, fully sealed. Your technician can install, repair or maintain equipment and power cable system without
    undermining seal between bushing and GIS.
    Meets the standard of EN50180-50181 interface type 2#, 3#.


    Parameters:


    Part Number2#3#
    Voltage Rating35KV35KV
    Rated Current800A1250A
    AC Witnstand Voltage 5Min117KV117KV
    DC Withstand Voltage15 Min104KV104KV
    PD At Ambient Temperature45KV10pC45KV10pC
    Impulse Voltage At Elevated Temperature200KV200KV
    Cable Section50-240mm
    50-630mm

    Structure

    1.Epoxy Insulated Bushing
    2.Iocking halves
    3.stress relief cone
    4.Plug-in termination kit
    5.Protection cover
    6.pressure spring
    7.Cable sheath
    8.Grounding wire
    9.Cable
    Cable not included


    Packing
    Termination housing
    locking halves
    Protection cover
    Cable sheath
    Braided ground wire
    CFS
    Wipers
    Installation instruction
    silicone grease
    Certificate
